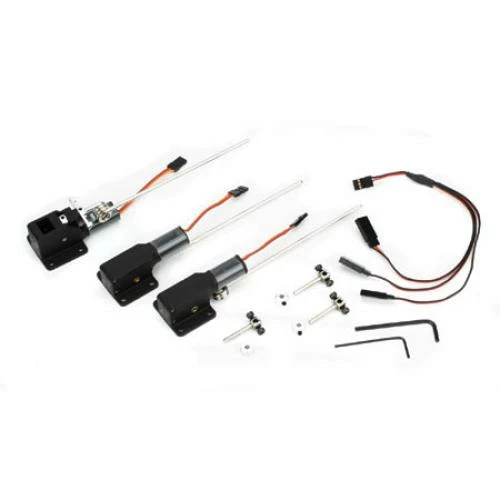

Add the realism of functioning retracts to your 15- to 25-sized airplanes. E-flite’s completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.

15 – 25 Size Tricycle Electric Retracts Features:

• Robust landing gear strut and mounting bracket
• Integrated electric motor with a micro PCB
• Built-in overcurrent protection
• Strut Diameter: 0.137 in (3.5mm)
• Aircraft Weight: 4.00 – 7.00 lb (1.80 – 3.10kg)

15 – 25 Size Tricycle Electric Retracts Specfications:

• Connector Type:
  : Universal
• Current Draw Idle:
  : 5mA
• Current Draw Stall:
  : 200mA
• Motor Type:
  : Electric brushed can
• Speed:
  : 1.25 sec @4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
• Voltage:
  : 4.8V-7.4V

Spec

• Brand: E Flite
• Part No: EFLG230
• Barcode: 605482776520
• Fitment: Option Part
