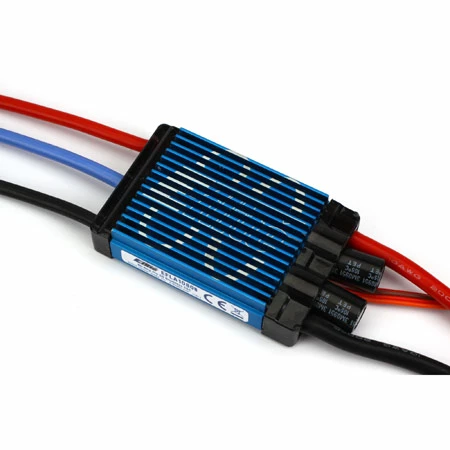

When performance matters in your high-current applications, look no further than the E-flite® 80-amp Pro switch-mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated switch-mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic end-caps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range and more, the E-flite 80-amp Pro switch-mode ESC is truly a ‘pro series’ electronic speed control.
This product is not intended for use by children under 14 years of age without direct adult supervision.
E Flite 80 Amp Pro Switch-Mode BEC Brushless ESC EC5 Connector (V2) Features:
- Up to 80 amps continuous current with proper air flow and 100 amps burst current (15 seconds)
- 5V switch-mode BEC capable of 5 amps continuous current with 6 amps max burst on any recommended input voltage
- Drive up to 7 analog or 6 digital standard-size servos with the BEC on any recommended input voltage
- 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low voltage cutoff with settings for 3-cell Li-Po (9.2V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
- Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
- Programmable soft start-up rate – .25 second or 1 second
- Auto motor shut down if signal is lost or there is interference
- Programmable timing—5 user-selectable ranges–use with a large variety of brushless motors
- Two operating modes–Airplane or Heli

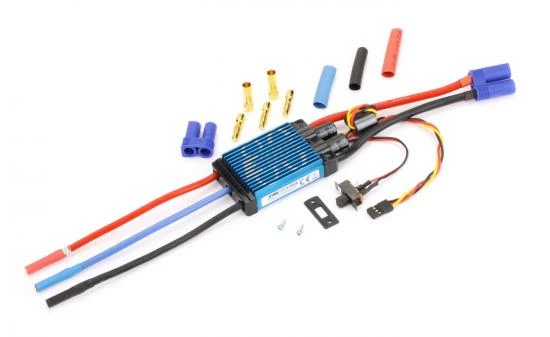

- Pre-wired connectors—E-flite EC5 on battery input and 4.0mm female gold bullets on motor output leads
E Flite 80 Amp Pro Switch-Mode BEC Brushless ESC EC5 Connector (V2) Specfications:
- Amperage:
: 60 & Up - Auto Cutoff:
: Yes - BEC Continous Current:
: 5A - BEC Voltage:
: 5.5V Switch-mode - Brakes:
: Yes - Cells w/BEC:
: 9-18 cells NiMH, 3-6S LiPo - Forward:
: Yes - Input Connector Types:
: EC5, 10AWG leads - Momentary Peak Current:
: 100A (15 seconds) Proper Cooling Required - Output Connector Types:
: 4mm Gold Bullet, 12AWG leads - Overload Protection:
: Yes - Time Delay Brake:
: Yes
Spec
- Brand: E Flite
- Part No: EFLA1080B
- Barcode: 605482053102
- Fitment: Option Part
