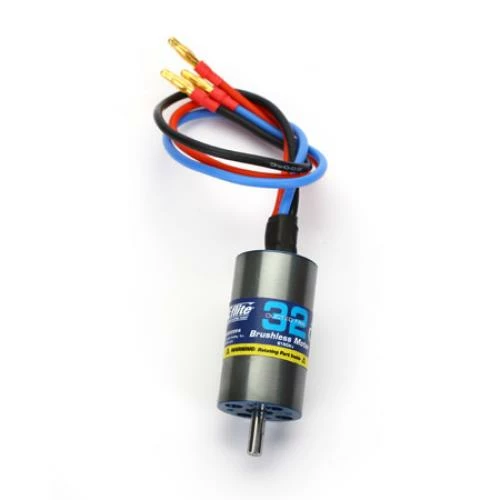

E-flite’s BL32 DF Brushless Motor is an ideal choice for products such as E-flite’s Habu 32 DF and other similar-sized ducted fan airplanes when using the purpose-built Delta-V 32 80mm EDF (EFLDF32). The motor will provide great performance in 80mm diameter fan units requiring a 28mm inrunner motor.

DF32 Brushless Motor 2150KV Features:

• 6-pole design
• Ideal for 80mm EDF Units
• Includes mounting hardware
• Purpose-built for the E-flite® Delta-V® 32 80mm EDF unit
• Up to 1,400 continuous input watts or 1,665 maximum burst
• High-quality construction with ball bearings and hardened steel shaft

DF32 Brushless Motor 2150KV Specifications:

• Type: Brushless Inrunner
• Size: 32-size for Ducted Fans
• Bearings or Bushings: Bearings
• Wire Gauge: 14 AWG
• Voltage: 14.8V – 22.2V
• RPM/Volt (Kv): 2150Kv
• Resistance (Ri): 0.026Ω
• Idle Current (Io): 2.6A @ 20V
• Continuous Current: 62A
• Maximum Burst Current: 75A
• Cells: 4S-6S Li-Po or 14-18 cells NiCd/NiMH
• Speed Control: 80A
• Weight: 5.70 oz (162g)
• Overall Diameter: 1.10 in (28.0mm)
• Shaft Diameter: 0.20 in (5.0mm)
• Overall Length: 2.00 in (52.0mm)

Spec

• Brand: E Flite
• Part No: EFLM3032DFA
• Barcode: 605482655535
• Fitment: Option Part
