Higher Performance Habu

The Habu STS (Smart Trainer with SAFE®) 70mm EDF was a game-changer that finally made it possible to learn to fly RC airplanes successfully with a jet! E-flite® engineers also realized that a more powerful and capable version would be even more exciting for low-time to experienced pilots to fly. Enter the Habu SS (Super Sport) 70mm EDF jet — a modified version of the Habu STS that offers nearly unlimited vertical performance, more speed, and even more aerobatic capability. It has a 4S to 6S compatible power system featuring a specially-tuned motor and 70mm 10-blade fan, along with a telemetry-capable Avian™ 70-amp Smart Lite ESC. It’s also available in a BNF® Basic version equipped with exclusive Spektrum™ AS3X® and optional-use SAFE® Select technologies. The Habu SS is easy enough for a wide variety of low-time pilots with little to no EDF experience to fly successfully — while also being one of the best all-around fun-to-fly and no hassles high-performance EDF sport jets for experienced pilots too!

Features

• A modified version of the popular Habu STS that offers nearly unlimited vertical performance, more speed and even more aerobatic capability
• Based on one of the best first and high-performance EDF (Electric Ducted Fan) sport jet platforms ever designed—the legendary Habu
• Unique airframe design delivers incredible low-speed handling and slow speed performance that makes it one of the easiest to fly jets EVER
• Specially tuned motor and 70mm 10-blade fan compatible with 4S to 6S batteries without the need for modifications or upgrades
• Popular and affordable 4S to 6S 3200–4000mAh batteries deliver excellent performance and flight times

• 70-amp Spektrum™ Avian™ Smart Lite ESC provides real-time battery voltage, current, RPM and other data via compatible receivers and transmitters
• 4-channel control with five factory-installed servos and linkages for full aerobatic capability
• Wide-stance landing gear with lower profile wheels/tires for a sleeker look and less drag
• Optional oversized tires for operation from a variety of surfaces including thick grass
• Landing gear can be removed for easy hand launching and belly landings
• Composite-reinforced and strengthened EPO airframe
• Factory-finished in a high-visibility trim scheme
• Fast and easy assembly – no glue required

More Power — More Capabilities

Based on the legendary Habu — one of the best first and high-performance EDF (Electric Ducted Fan) sport jet platforms EVER designed — the E-flite® Habu SS (Super Sport) 70mm EDF is a more powerful and more capable version of the popular Habu STS (Smart Trainer with SAFE)! It’s a simple, no hassles, easy, and extremely fun to fly high-performance sport jet that’s a perfect first-ever EDF for RC pilots with limited experience — while also being one of the best-ever everyday sport jets for experienced pilots. The Habu SS offers the same incredible low-speed handling and performance as the STS, but features updates and upgrades for more aerobatic capability, higher speeds, and nearly unlimited vertical performance. The specially tuned motor and 70mm 10-blade fan are compatible with 4S to 6S batteries without the need for modifications or upgrades. This factory-installed power system delivers plenty of speed and thrust with popular 4S 3200mAh batteries, added power with 5S batteries, or nearly unlimited vertical performance and speeds up to 100 MPH in a dive with 6S 4000mAh batteries! With Smart and non-Smart batteries, the exclusive 70-amp Spektrum™ Avian™ Smart Lite ESC can provide a variety of real-time power system telemetry data including motor RPM, current, overall battery voltage and more via compatible receivers (such as the AR631 included with the BNF® Basic version) and Spektrum AirWare™ equipped transmitters. Best of all a wide range of pilots, even those who have never flown an EDF before, can enjoy flying this model successfully — especially the BNF® Basic version that includes exclusive AS3X® and SAFE® Select technologies.

Factory-finished in a trim scheme with higher-visibility colors, the airframe is composite-reinforced and strengthened to handle the added speed and aerobatic capabilities right out of the box. The optional-use fixed landing gear is outfitted with smaller diameter wheels and tires for sleeker looks and less drag. The wide-stance gear plus steerable nosewheel makes it easy to taxi, takeoff, and land on paved, dirt, and shorter grass surfaces — or you can install the oversized wheels and tires from the Habu STS to fly from thicker grass and other rough surfaces. You can also remove the landing gear for more speed and vertical performance with easy hand launches over and belly landings on grass. Best of all, the Habu SS 70mm EDF assembles quickly and easily without glue or special tools — so you can be ready to fly in less time than it takes to charge a battery!

Are you new to flying RC (Radio Controlled) aircraft? If you are, we recommend learning to fly with one of our purpose-built trainer aircraft such as the E-flite® Habu STS (Smart Trainer with SAFE) 70mm EDF (www.horizonhobby.cc/HabuSTSRTF). It’s equipped with exclusive and innovative SAFE technology that makes it possible for almost anyone to learn to fly successfully! The Ready-To-Fly (RTF) version includes everything needed to fly in one box and is the perfect choice if you’re a new RC pilot.



Smart Technology

The Habu SS 70mm EDF is equipped with an exclusive Spektrum™ Avian™ Smart Lite ESC that can provide a variety of real-time power system related telemetry data including motor RPM, current, battery voltage and more – with Smart and non-Smart batteries – via compatible receivers (including the AR631) and Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6, 8 and 10, iX12, iX20 and others) while you fly.



Versatile Power

The factory-installed Spektrum™ Avian™ 70-amp Smart Lite ESC and high-power brushless outrunner motor can drive the 10-blade 70mm fan with a wide range of batteries. Install a 4S 3200mAh battery for plenty of speed and thrust, a 5S battery for added power, or a 6S battery up to 4000mAh to deliver nearly unlimited vertical performance and speeds up to 100 MPH in a dive!



Uniquely Optimized

Jets are typically faster and harder to fly than most of their prop-driven counterparts, which can make it difficult for low-time – and sometimes even experienced pilots – to fly them. The unique and optimized airframe design of the Habu SS improves low-speed handling and slow speed performance that makes it one of the easiest to fly jets EVER!



More Capable

The lightweight yet durable composite-reinforced EPO airframe has been strengthened to handle more power, higher speeds and higher energy aerobatics. It’s also factory-finished in a high-visibility trim scheme.



Capable Gear

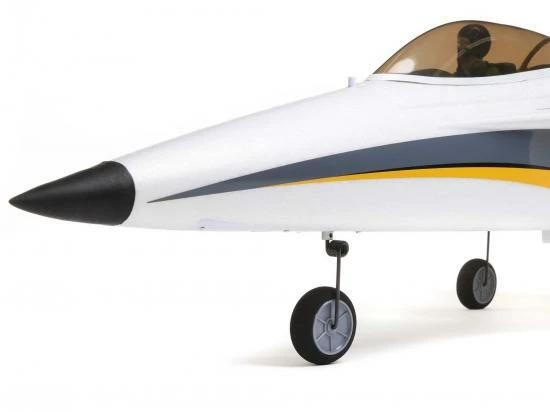

The wide-stance tricycle landing gear with a steerable nose wheel offers great ground handling for easier takeoffs and landings on a wide variety of surfaces from paved runways to grass and even dirt. The lower profile wheels/tires offer a sleeker look and less drag, or you can install the optional oversized tires (sold separately) for operation from an even wider variety of surfaces including thick grass. Or, you can leave the landing gear off for more speed and vertical performance plus easy hand launches over and landings on grass.



Easy Assembly

The Habu SS 70mm EDF arrives mostly factory-assembled with the power system and servos. All you need to do is finish some quick and easy final assembly, without the use of glue or special tools, and you’ll be ready to fly in less time than it takes to charge a battery!



Plug-N-Play® Completion Level

This Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Simply install the receiver, finish any final assembly, and fly!



E Flite Habu SS 70mm EDF Jet – PNP Specfications:

• Approximate Assembly Time: Less than 1 Hour
• Battery: Sold Separately
• Battery Connector: EC5 or IC5 Connector
• Charger: Sold Separately
• Completion Level: Plug-N-Play
• Fan Size: 70mm EDF
• Flaps: No
• Power Type: Electric
• Landing Gear: Tricycle landing gear with a steerable nose wheel
• Material: EPO
• Minimum Required Radio: 4+ Channel
• Motor Type: Brushless – Outrunner
• Product Length: 45″ (1143 mm)
• Product Weight: 2.45lb (1.11kg) w/o battery
• Radio: Sold Separately
• Receiver: Sold Separately
• Recommended Motor Battery: 4S 14.8V to 6S 22.2V 3200–4000mAh LiPo with EC5™ or IC5® Connector
• Servos: Included
• Skill Level: Level 2
• Speed Control: Included
• Technology: Smart
• Wingspan: 40.5″ (1029 mm)

In The Box

• (1) E-flite® Habu SS 70mm EDF
• (1) Spektrum™ Avian™ 70A Brushless Smart Lite ESC (installed)
• (1) Brushless Outrunner Motor (installed)
• (5) Servos (installed)
• (1) Product Manual

Needed to Complete

• (1) Full-range 4+ Channel Transmitter and Receiver
• (1) 4S 14.8V to 6S 22.2V 3200–4000mAh LiPo with EC5™ or IC5® Connector (use the IC5® Battery / IC3® Device adapter to use batteries equipped with IC3® or EC™ connectors; SPMXCA508 sold separately)
• (1) Compatible LiPo Charger

Spec

• Brand: E Flite
• Part No: EFL0975
• Barcode: 605482133767
• Flying Style: EDF Jets
• Power: Electric
• Assembly Level: PNP (Plug n Play) / RR
